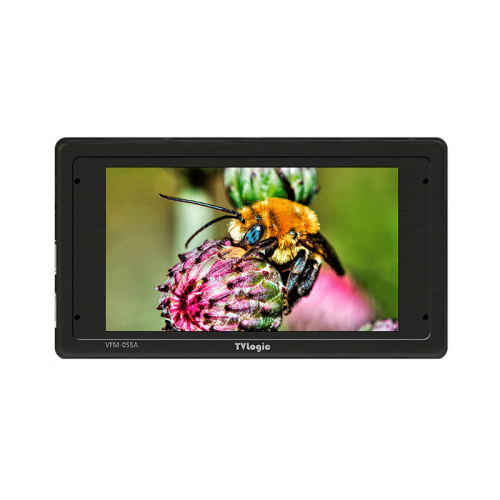

5″ TvLogic 055A OLED

TVLogic’s VFM-055A 5.5″ OLED Monitor offers cinematic image quality in a sleek, compact form suitable for use as an EVF or on-board camera monitor. Is perfect like a camera operator monitor.

Category:
  • 1 x Magic arm
  • 1 x Protector glass
  • 1 x Sunhood
  • 2 x HD-SDI bnc short cable
  • 2 x D-Tap to power cable
  • Panel Type: OLED
  • Display Size: 5.5″ / 14.0 cm
  • Screen Resolution: 1920 x 1080
  • Aspect Ratio: 16/9
  • Viewing Angle: H/V 160°
  • Maximum Brightness: 350 cd/m2
  • Contrast Ratio: 17,000:1
  • Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
  • Image Controls
    • Blue Only, Focus Peaking, H/V Delay, Image Flip, Screen Markers, Underscan, Waveform, Vectorscope

I/O

  • Video
    • 1 x BNC (3G-SDI) Output
    • 1 x HDMI Type A Output
    • 1 x BNC (3G-SDI) Input
    • 1 x HDMI Type A Input
  • Embedded Audio
    • HDMI
    • SDI
  • Audio: 1 x 3.5 mm Headphone Output
  • Built-In Speaker: 1
  • Other I/O: None
  • Card Slot: None

Format Support

  • Video FormatSDI (10-Bit 4:2:2)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 480i
    • 576i
  • HDMI (8/10/12-Bit)
    • 1080p: 60/59.94/50/30/25/24/23.98
    • 1080PsF: 30/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
    • 576p: 100/50
    • 480p: 120/119.88/60/59.94
    • 480i: 240/239.76/120/119.88/60/59.94
    • 576i: 200/100/50

General

  • Dimensions (W x H x D): 162.5 x 92 x 35.8 mm
  • Weight: 420g
